Lecture 3. Convolution Neural Network and its Variants

Lecture 3

Basic

• Overview of CNNs
  • A special case of MLP
  • Commonly apply to visual object or 2D array input
  • Unified feature extractor and classifier in one network
  • Filter kernel = weights in between layers
  • Feature map = filtered outputs

• How can compute Feature Map Size?

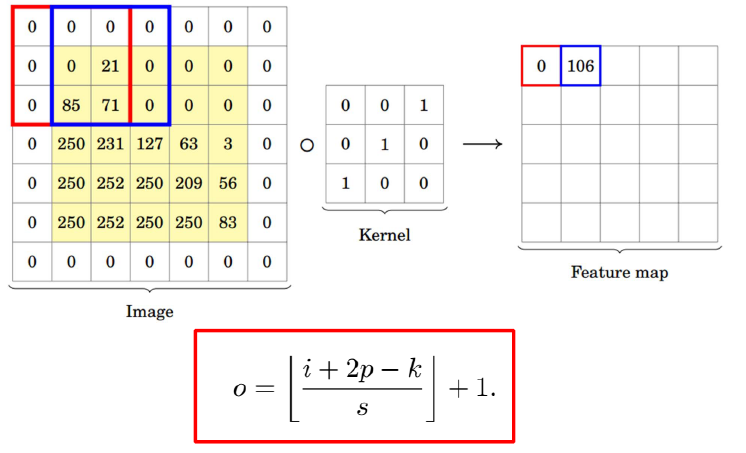

  • i = input size, k = filter size(kernel), s = stride, o = output feature map size

  • if o<i, can occur some problem

    • then, we can use Zero Padding



• At same points, we can apply multiple filters. We call it "channel"

Two Characteristics of CNNs

1. Local Connectivity - image is locally correlated
2. Weight Sharing- overcome enormous weights problem

Local Connectivity

• MLP : Weights are fully connected, ie. MLP use all weights

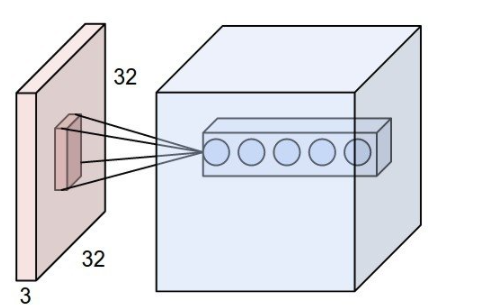

• CNNs : One neuron will connect to filter size chunk , thus only have 5x5x3 weights

Receptive Field(RF)

How much a convolution window "see" on it's input image or part of the image that is visible to one filter at a time

In upper figure, dark pink square in left light pink square(32x32x3) is Receptive Filed.

It means "Receptive Filed size == filter size"

• How the later feature map "see" the image?

Weight Sharing

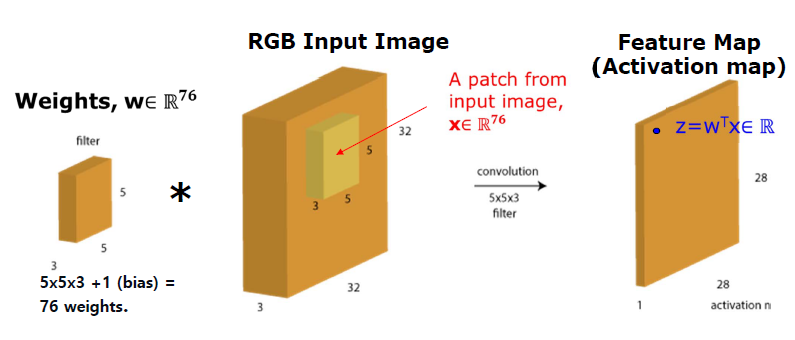

• MLP has different weights for every single neuron.
  • Total # of weights = (filter size) x (Input_w x Input_h x # of feature maps) = too many!
• CNN has same weight for every single feature map
  • Total # of weights = (filter size) x # of feature maps = small than MLP

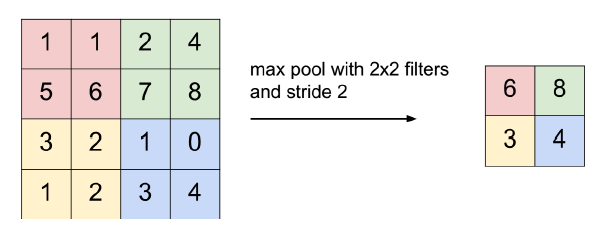

Max Pooling

Pooling does resize the activation map from convolution to get new layer.

• Output size (o)
• Input size (i)
• Pooling window size (k)
• Stride (s)

Fully Connected (FC) layer

• FC layer started right after the last convolution or pooling layer
• Flatten pooling layer = input layer of MLP
• Last FC layer = output layer of ConvNet. It uses several tasks like classification.

Summary

Typical ConvNet process : [CONV layer - ReLU-Pooling] x N - [FC-ReLU] x M - FC - (softmax or sigmoid)

• Parameter in CNN

  • Conv layer
    • Filter window size (Odd number)
    • Number of Filters (Power of 2)
    • Stride
    • # of Conv layers
  • Pooling layer
    • Pooling window size
    • stride
    • # of pooling layer
  • Fc layer
    • # of hidden nodes
    • # of FC layer
  • BP algorithm
    • Learning rate, batch number, momentum coefficient, L2 coefficient

  Feature Normalization in CNN

  Batch Normalization(BN)

  • Using mean and variance of each feature, Normalize each feature in batch
  • normalize feature map of each channel over a batch sample

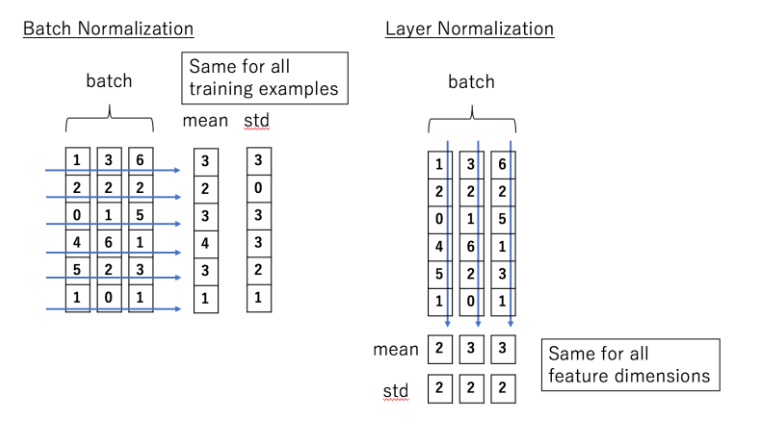

  Layer Normalization(LN)

  • Using mean and variance of each feature in input, normalize each input in batch
  • applicable to dynamic network and recurrent network(good)
  • normalize entire feature map



  Instance Normalization

  • It is similar with LN but not applicable to MLP and RNN. It is best for CNNs.
  • Effective for style transfer and image generation tasks using GAN
  • Compute mean and variance each sample in each channel

  Group Normalization

  • It is similar with Instance Normalization but not applicable to MLP and RNN. It is best for CNNs.
  • Effective for object detection, video classification (It is effective in memory problem)
  • Compute mean and variance each sample in each group that channels are grouped by group size g.
  • In image, The center of image and edge of image do not have equal meaning.
    • Thus, We can get flexibility if we compute differently each channels.
    • Also, Image's channel is not independent. If we use some channels nearby pivot channel, we can apply normalization at large region.

Storage and Computational Complexity

• c_i-1 = previous layer channel number
• c_i = previous layer channel number
• m_i-1 = previous feature map size
• m_i = previous feature map size
• k = filter size

# weights for layer i = (k x k x c_i-1) xc_i

# memory of layer i = m_i x m_i x c_i

# FLOPs = (kxk) x(m_i x m_i) x (c_i-1 x c_i)

CNNs Variants

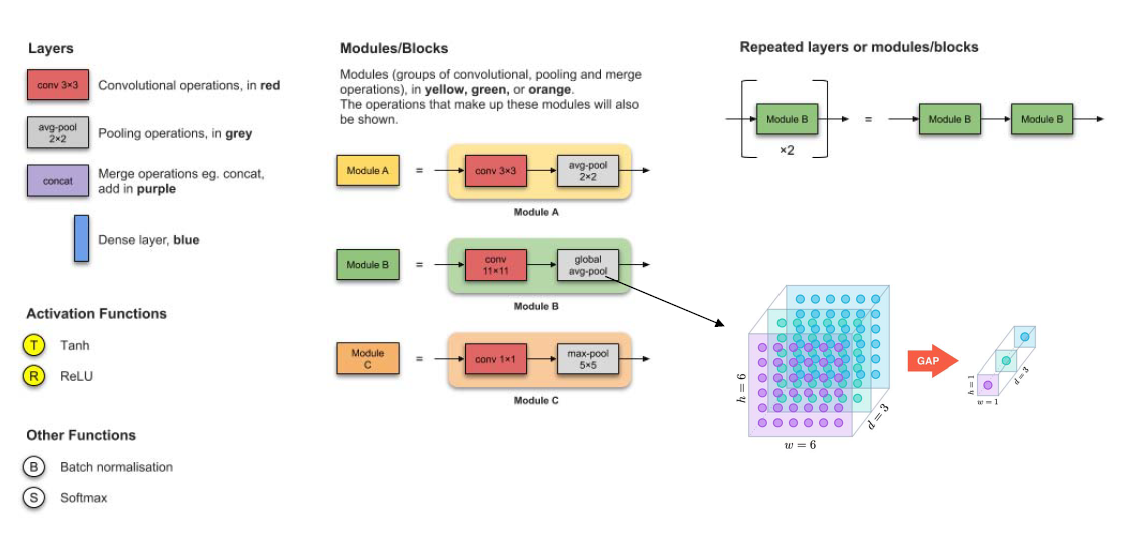

Legends

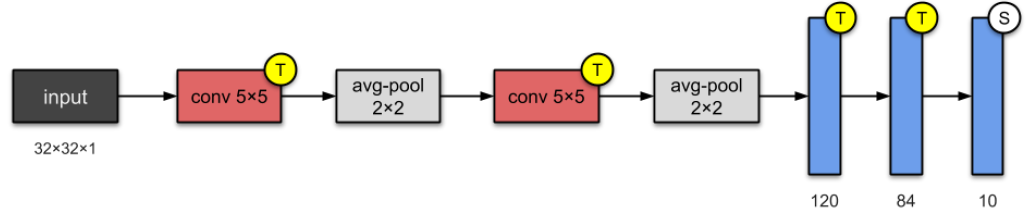

LeNet 5 (1998)

• This architecture has become the standard
  • Stacking ConvNet and pooling
  • ending network with one or more fc.

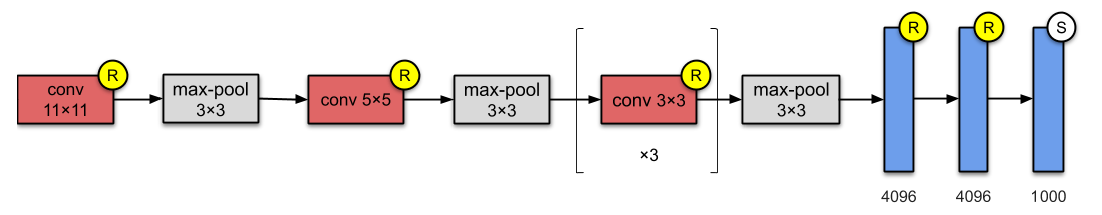

AlexNet(2012)

• Apply RelU, pooling, data augmentation, dropout, Xavier initialization

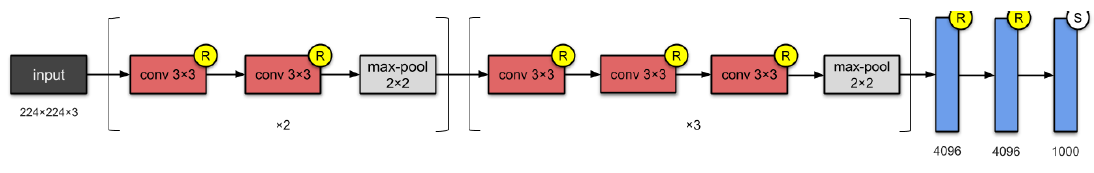

VGGNet - 16 (2014)

• use only 3x3 sized filter.
• Before VGGNet, they use large filter. But 3x3 sized filter can result same output if use mulitple filter compared with large sized filter.

Effects of 3x3 sized filter

1. Decrease number of weights
   • If we have an input which has size [50x50x3] and 5x5 sized filter, # of weight is 5x5x3 = 75
   • If 3x3 sized filter, # of weight is (3x3x3)+(3x3x1) = 27 + 9 = 36
     • 2 consecutive 3x3 filters are same as 5x5 filter
2. Increase non-linearity
   • Each convolution has ReLU. 3x3 sized filter model has more non-linear function like ReLU than large sized filter model.

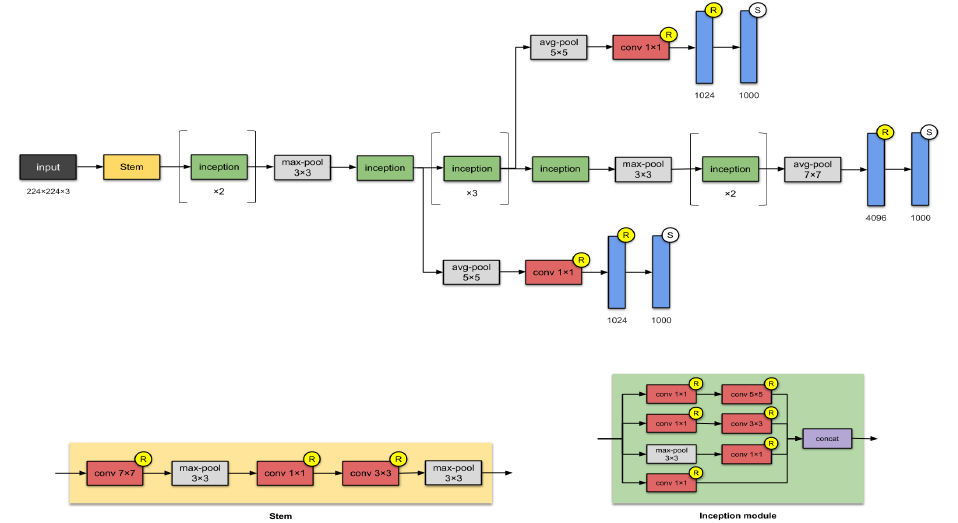

GoogleNet Inception-V1 (2014)

• 22 layers and 5 Million weights in total

• GoogleNet contains Inception Module that has parallel towers of convolutions with different filters, followed by concatenation, which captures different features at 1x1, 3x3 and 5x5.

  • In Inception Module, use 1x1 filter before 5x5 filter or 3x3 filter because if we don't use 1x1 sized filter, will get too many weights!

• We call 1x1 filter "bottleneck structure".

  • 1x1 convolutions are used for dimensionality reduction to remove computational bottlenecks
  • 1x1 convolutions add nonlinearity within a convolution

• Auxiliary classifier

  • Deeper network layers, higher likelihood of vanishing gradient.
  • Encourage discrimination in the lower stages
  • It only uses in training time.

ResNet-50 (2015)

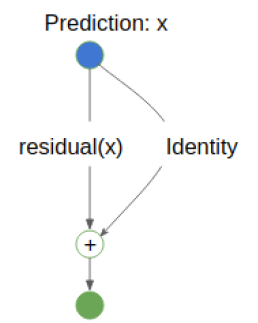

• Skip connections/identity mapping can make deep network
• use batch normalization
• Remove FC layer and replace with GAP(Global Average Pooling)

Motivation

• When networks go deeper, a degradation problem has been exposed.
  • 56-layer's result is worse than 20-layer
  • But deep layer model has good results in many times.
    • So, need some techniques to make deep-layer model

Why ResNet works?

• use identity mappings to approximate "shallow network"



• Advantages of Skip Connection

  • Reduce optimization difficulty of deeper networks
  • Alleviate gradient vanishing problem
  • Reuse lower level feature

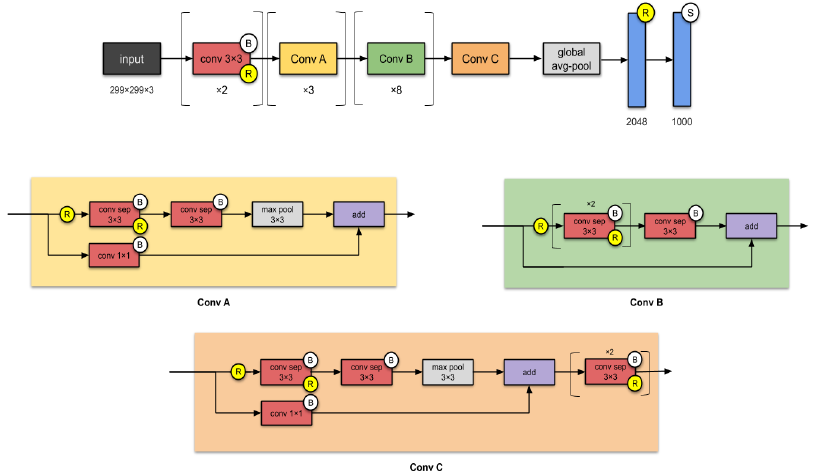

Xception (2016)

• An adaptation from Inception where the Inception modules have been replaced with depthwise separable convolution(DS-convolution layers)
  • Xception has same number of parameters as Inception

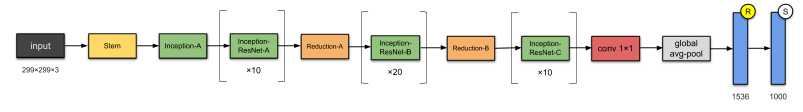

Inception - ResNet-V2 (2016)

• Converting Inception modules to Residual Inception blocks

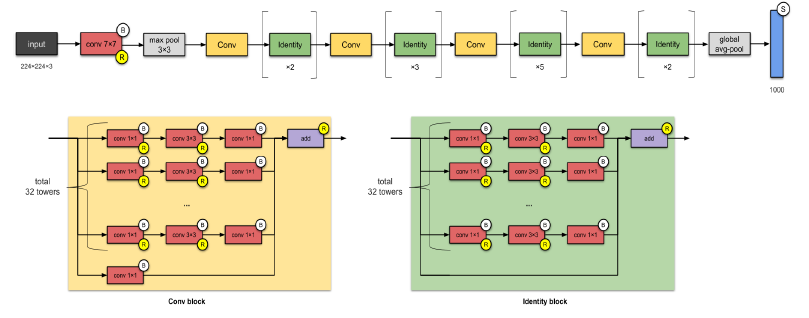

ResNext-50 (2017)

• Adding of parallel towers/branches/paths within each module.

DenseNet (2017)

• Dense blocks where each layer is connected to every other layer in feedforward fashion
  • Alleviates vanishing gradient

Squeeze and Extraction - SENet (2017)

• Squeeze and Extraction can do feature recalibration to feature maps from origin networks.
• It is not a complete network, but a wrapper. Thus, we can use it with ResNet, ResNext, Inception etc.
• Improve channel interdependencies at almost no computational cost.

Squeeze

• Get a global understanding of each channel by squeezing the feature maps to a single numeric value.
  • use GAP(Global Average Pooling)

Extraction

• Feature Recalibration to computer channel-wise dependencies.
  • using Fully connected layer and non-linear function.
